DURASOUND PREMIUM FLECK 2'2"X2" TILES FLOORING
Superior sound attenuation & shock insulation
Drop free weights directly onto the floor!
Reduce structure-borne sound transfer
by up to 38 decibels!
Tight seam lines provide superior aesthetics
Drop free weights directly onto the floor!
Improve the experience
REDUCE the sound.
Dramatically reduce the sound transmission of heavy weight drops in any
fitness facility with duraSOUND® Rubber Acoustic Tiles by sofSURFACES.
duraSOUND was performance-engineered to minimize low-frequency impact
noise, control vibrations and reduce the transfer of audible structure-borne
sound within building structures. Provide a better acoustic experience for both
your customers and neighboring businesses with sound reductions of up to 38 dB!
sofSURFACES.com 1 800.263.2363
PHYSICAL PROPERTIES
Test Description ASTM Ref. Results Test Lab
Freeze/Thaw C67 0.27% Weight Change (No deterioration) INTERTEK
Rubber Deterioration/Air Oven D573 No Deterioration (0.48% Length Chg./0.62% Thickness Chg.) INTERTEK
Abrasive Wear Index C501 167 (Average) INTERTEK
Volume Density D3676 904.77 kg/m3 INTERTEK
Slip Resistance E303 Dry Friction: 53/Wet Friction: 32 INTERTEK
Slip Resistance D2047 Dry 0.81/Wet 0.82 SGS
Compression Deflection D1667 29.5 PSI to 25% Compression NWL
Compression Set D395 4.37% Permanent Set NWL
Tensile Strength D412 331 psi or 2.28 (Mpa) INTERTEK
Elongation at Break D412 119% INTERTEK
Tear Strength (Average) D624 16.3 (N/mm) INTERTEK
Peak Tear Load (Average) D624 46.8 (N) INTERTEK
Critical Radiant Flux E648-17A 0.26 (Avg. W/cm2
) INTERTEK
Flammability D2859 Pass NWL
Wear Surface Density (Durability) > 60 lb/ft3
PHYSICAL DIMENSIONS
Installed Size Available Thicknesses Weight (lbs.) Ea. sofRAMP Length/Width
Plus (Black) Plus (Color) Premium (All Blends)
24” x 24” 2.00“ (51 mm) 26.00 26.40 25.88 47.75/7.00”
24” x 24” 2.75“ (70 mm) 30.56 31.25 29.08 47.75/7.63”
24” x 24” 3.25“ (83 mm) 34.10 34.50 32.18 47.75/9.00”
NOTE: Weight drop test results shown are overall, peak A-weighted sound pressure level (fast response). Contact a member of our sales
team to obtain complete acoustical testing reports.
ACOUSTICAL TESTING RESULTS
Performed by Riverbank Acoustical Laboratories
Sound Transmission Class (STC)
ASTM E90 – Airborne Sound Transmission (over 6” concrete slab)
Impact Insulation Class (IIC)
ASTM E492 – Impact Sound Transmission (over 6” concrete slab)
Impact Insulation Class (∆IIC)
ASTM E2179 – Effectiveness in Floor Coverings
Non-Standard Heavy Weight Drop Test
Impact Noise Due to Weight Drop (Measured from room below)
To Date, no ASTM Standard.
Bare 6” Concrete Slab (dB-A)
duraSOUND Over 6” Concrete Slab (dB-A)
NOISE REDUCTION (dB)
duraSOUND 2.00”
by up to 38 decibels!
Tight seam lines provide superior aesthetics
FloorScore® is a certification program established by the Resilient Floor Covering Institute (RFCI) for hard surface flooring and flooring
adhesives products that meet strict indoor air quality (IAQ) requirements. Products bearing the FloorScore label meet the indoor air quality
emissions criteria of LEED, CHPS, the Green Guide for Health Care, and are recognized by a long list of healthy building programs.
© sofSURFACES Inc. 2022 | All rights reserved. duraSOUND® and KROSLOCK® are registered trademarks of sofSURFACES.

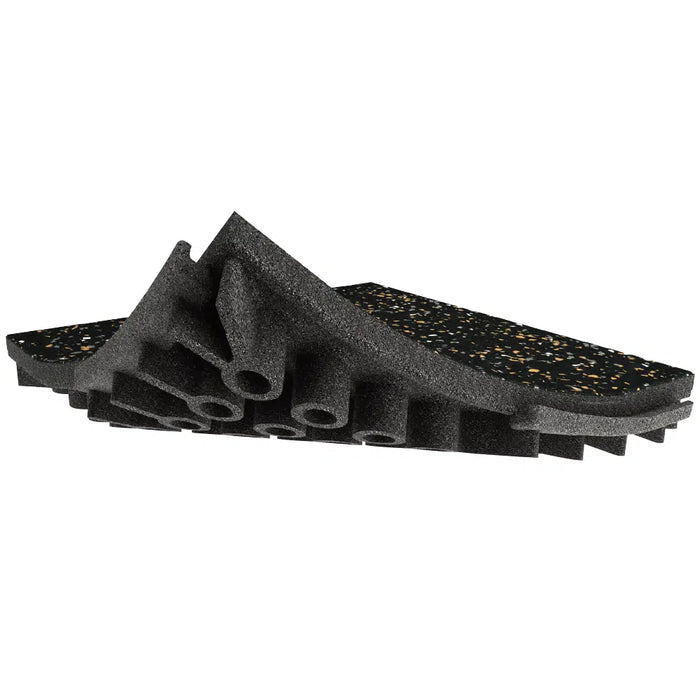

Engineered, shock-absorbing pedestals
evenly distributes weight over 64
pedestals per tile.
High compression wear layer is Fire Resistant
and Slip Resistant. Tested for over 400,000
repeated impacts with 800 lb of blunt force.
Raised hollow-core impact pedestal design
raises the system off the floor for superior
sound and vibration absorption.
Omni-directional patented KROSLOCK locking
mechanism locks tiles firmly in place without
requiring adhesive. Non-shifting and non-separating.
Engineered, shock-absorbing pedestals
evenly distributes weight over 64
pedestals per tile.
IMPACT PEDESTAL DESIGN
Choose from solid Plus Series Colors or
a number of Premium EPDM Color Blends:
Use duraSOUND Rubber Acoustic Tiles in cardio studios, free weight/dumbbell areas, PLUS SERIES SOLID COLORS
high-impact studios, personal training areas, machine areas, spinning studios or even daycare
centers where audible sound and vibration threaten to travel beyond your facility’s
floors and walls. Made from 100 percent post-consumer recycled materials, duraSOUND controls
audible structure-borne sound and vibration transmission within building structures while
keeping neighboring residents satisfied.
IMPROVE YOUR
SOUND GAME
with high performance Rubber Acoustic Tiles from sofSURFACES.
Create a low-decibel environment that property
managers and tenants will thank you for!
Saddle
Brown
Turf Terracotta
Green
Ocean
Blue
Slate
Gray
Midnight
Black
PLUS SERIES COLORS
Available Thicknesses: 2.00”, 2.75” & 3.25”
ACTUAL TEXTURE
Available Thicknesses: 2.00”, 2.75” & 3.25”
Pattern, texture and color capabilities are the hallmarks of our duraSOUND Premium Line. Our enhanced Premium Line offers more
opportunity for artistic expression through an assortment of aesthetically pleasing premium color blends. With an SBR/EPDM wear
layer, our Premium Line affords you the best solution for any fitness facility application.
PREMIUM SERIES EPDM COLOR BLENDS
Additional blends and custom color blends are available.
Please contact our sales team for more information. Additional charges and lead times may apply.
1 800.263.2363 or info@sofsurfaces.com
Plus Series is manufactured using 100% recycled rubber. Elongated rubber strands are utilized in the wear layer of the tile for
increased durability and a smooth visual texture while color is achieved through the use of our specially formulated pigments. Mix
colors together for a unique flare in design!
PREMIUM 10 SERIES (10% Color)
Black Blue Red Yellow Green Lt. Gray Med. Gray
PREMIUM 35 SERIES (35% Color)
Pumpkin Sapphire Shamrock Lava
Spice
Pewter Ivory
PREMIUM 70 SERIES (70% Color)
Forest Red Rock
Green
Smoke Aquamarine
PREMIUM 95 SERIES (95% Color)
Sedona Sierra Brown Granite Sangria
Additional blends and custom color blends are available.
Please contact our sales team for more information. Additional charges and lead times may apply
FOR COLOR OPTIONS GOTO: https://www.sofsurfaces.com/durasound
